PV Module


Product Features

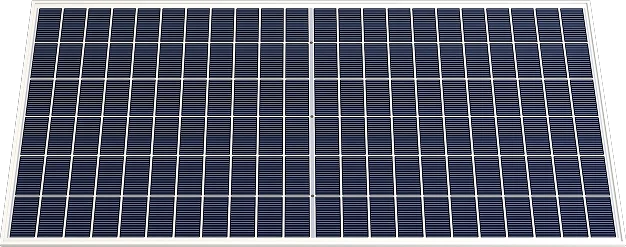

This high-performance monocrystalline solar panel is designed specifically for home rooftop systems.
Constructed with high-transmittance tempered glass and an anti-corrosion aluminum frame, it ensures weatherproof durability and a service life of over 25 years.
Top-tier original cells deliver superior conversion efficiency and steady power output, even in low-light conditions.
We provide a comprehensive one-stop service that includes site surveys, professional installation, grid connection assistance, and 24-hour on-site after-sales support. Additionally, you can track real-time generation revenue anytime via our mobile app.

Specification Parameters

Electrical Performance Parameters \| STC	Symbol	Numerical Value
Electrical Performance Parameters \| STC	Pmax[W]	605	610	615	620	625	630
Operating Voltage at Maximum Power Point	Vmp[V]	40.34	40.53	40.73	40.93	41.12	41.31
Operating Current at Maximum Power Point	Imp[A]	15.00	15.05	15.10	15.15	15.20	15.25
Open-Circuit Voltage	Voc[V]	47.95	48.10	48.25	48.40	48.55	48.70
Short-Circuit Current	Isc[A]	15.80	15.85	15.90	15.95	16.00	16.05
Module Efficiency	[%]	22.4	22.6	22.8	23.0	23.1	23.3
*STC Test Conditions: Air Mass AM1.5, Irradiance 1000W/㎡, Cell Temperature 25℃

Electrical Performance Parameters \| Bifacial Power Gain (Based on 10% Rear Side Irradiation Ratio)	Symbol	Numerical Value
Maximum Power	Pmax[W]	653.5	658.6	664.3	669.6	675.2	680.4
Operating Voltage at Maximum Power Point	Vmp[V]	40.34	40.53	40.73	40.93	41.12	41.31
Operating Current at Maximum Power Point	Imp[A]	16.20	16.25	16.31	16.36	16.42	16.47
Open-circuit Voltage	Voc[V]	47.95	48.10	48.25	48.40	48.55	48.70
Short-circuit Current	Isc[A]	17.06	17.12	17.17	17.23	17.28	17.33

Mechanical Structure Performance	Specification
Cell Arrangement	132 cells [6×22]
Module Dimension	2382×1134×30mm
Weight	32.5 kg
Front Glass	2.0mm Thermally Strengthened Glass
Rear Glass	2.0mm Thermally Strengthened Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Protection Class
Cable	4 mm², +300/-200 mm, customizable length
Diode Quantity	3
Connector	GCL-01/GCL-02/MC4-EV02/Others
Wind/Snow Load	2400 Pa / 5400 Pa*
Bifaciality (%)	80±5
